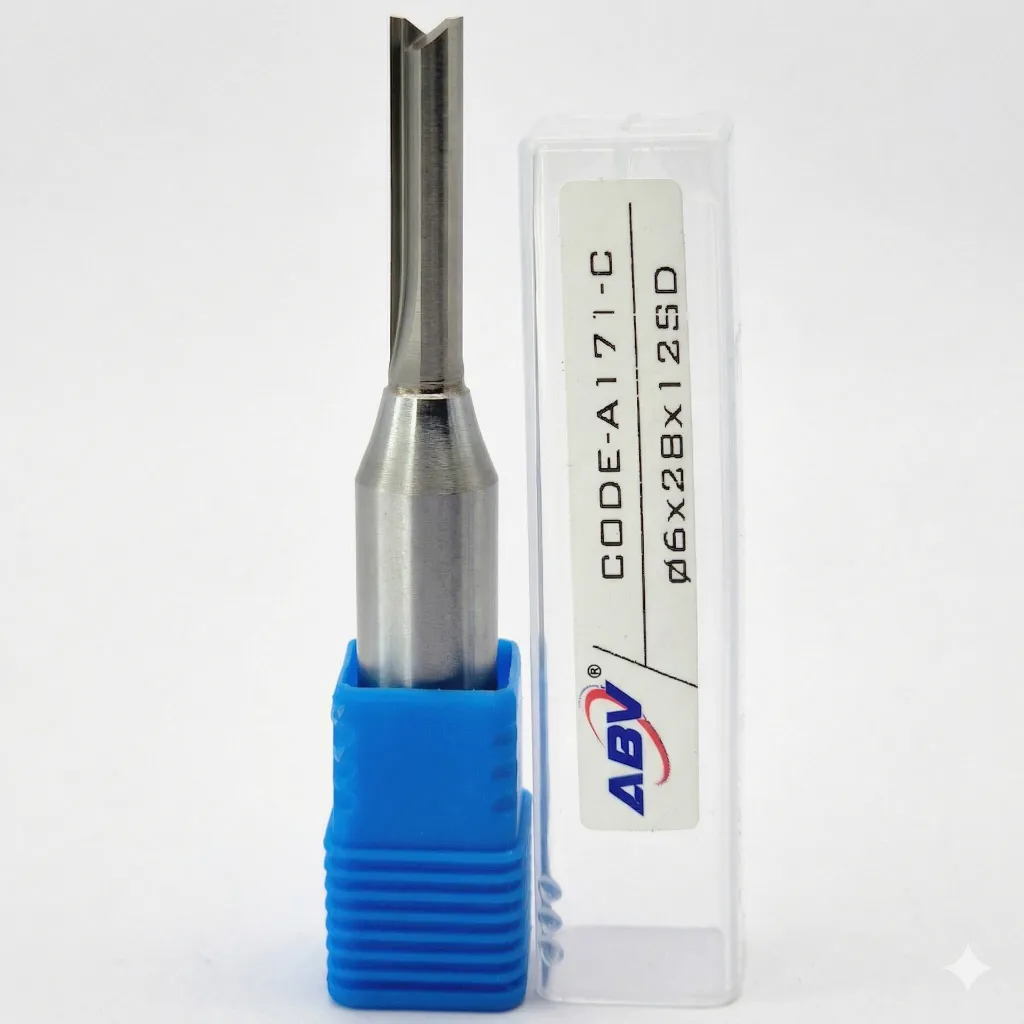

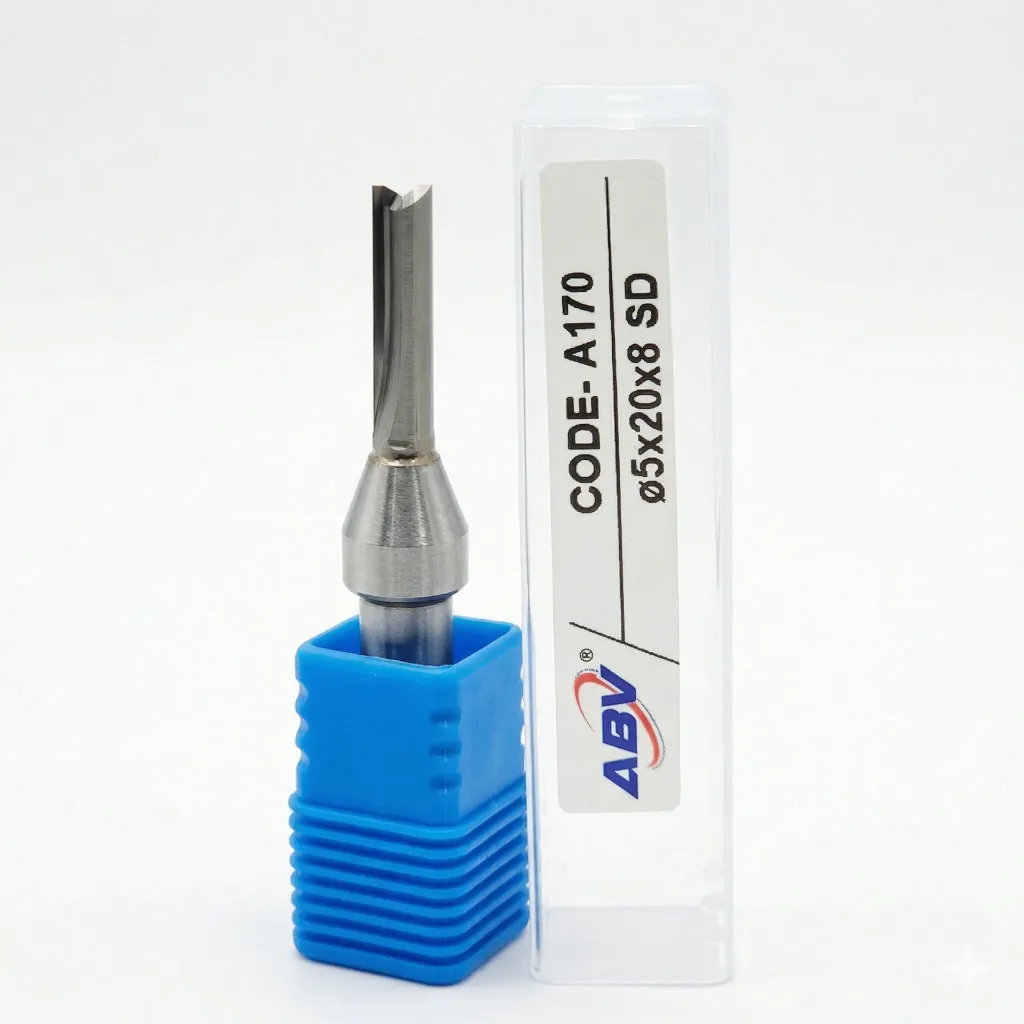

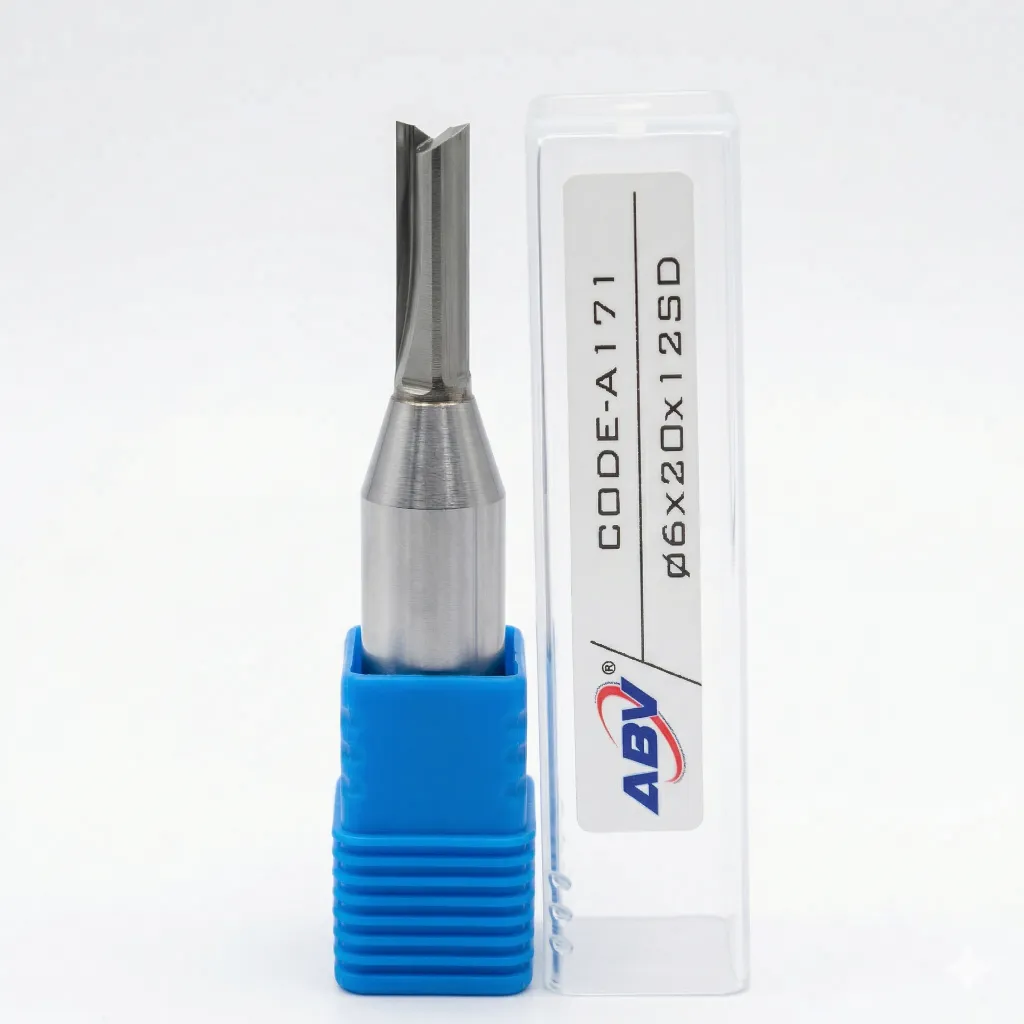

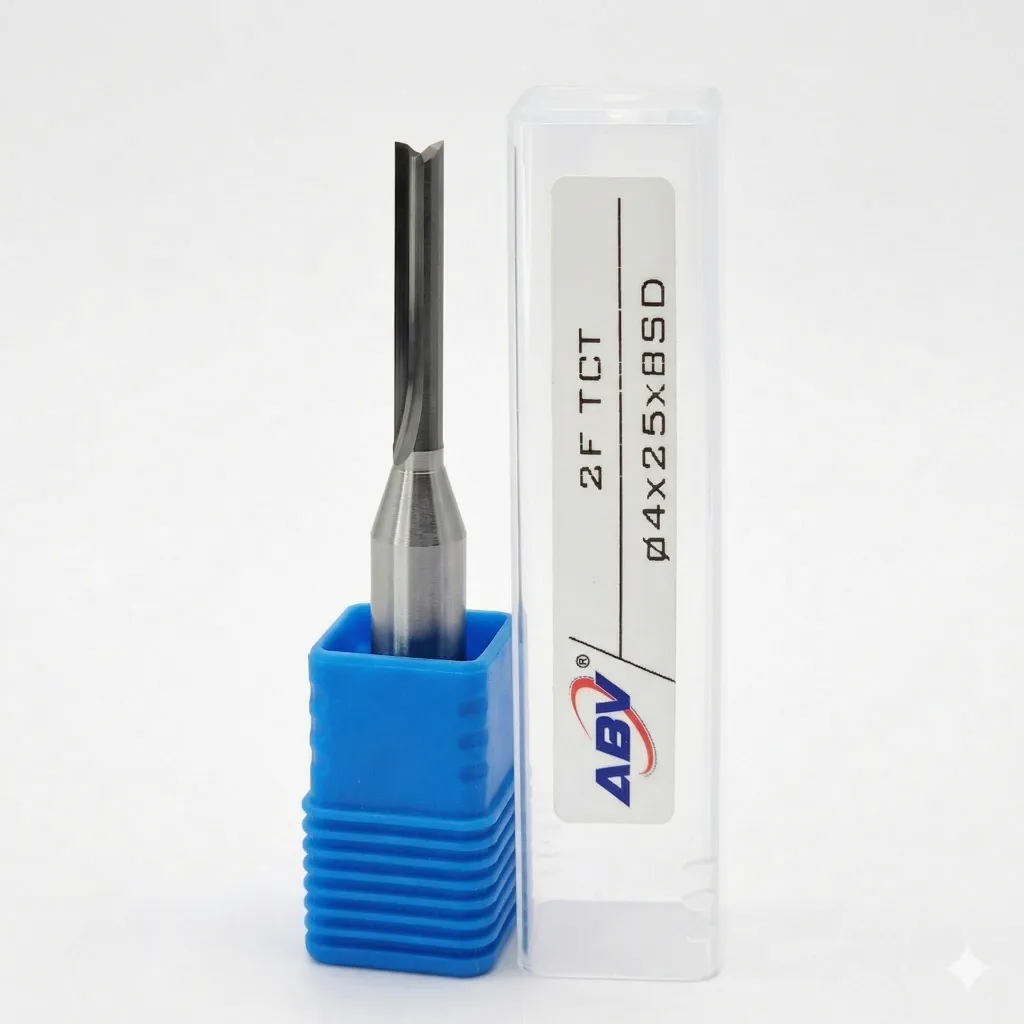

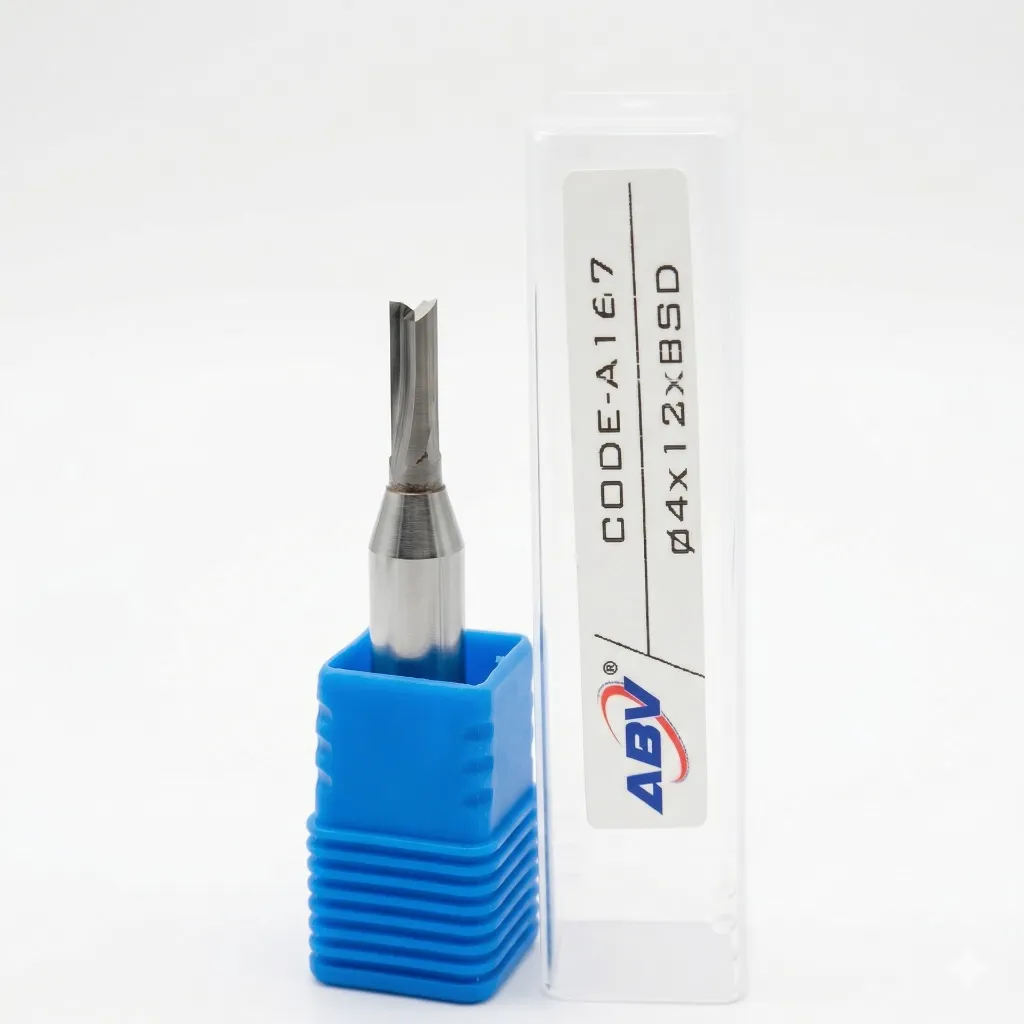

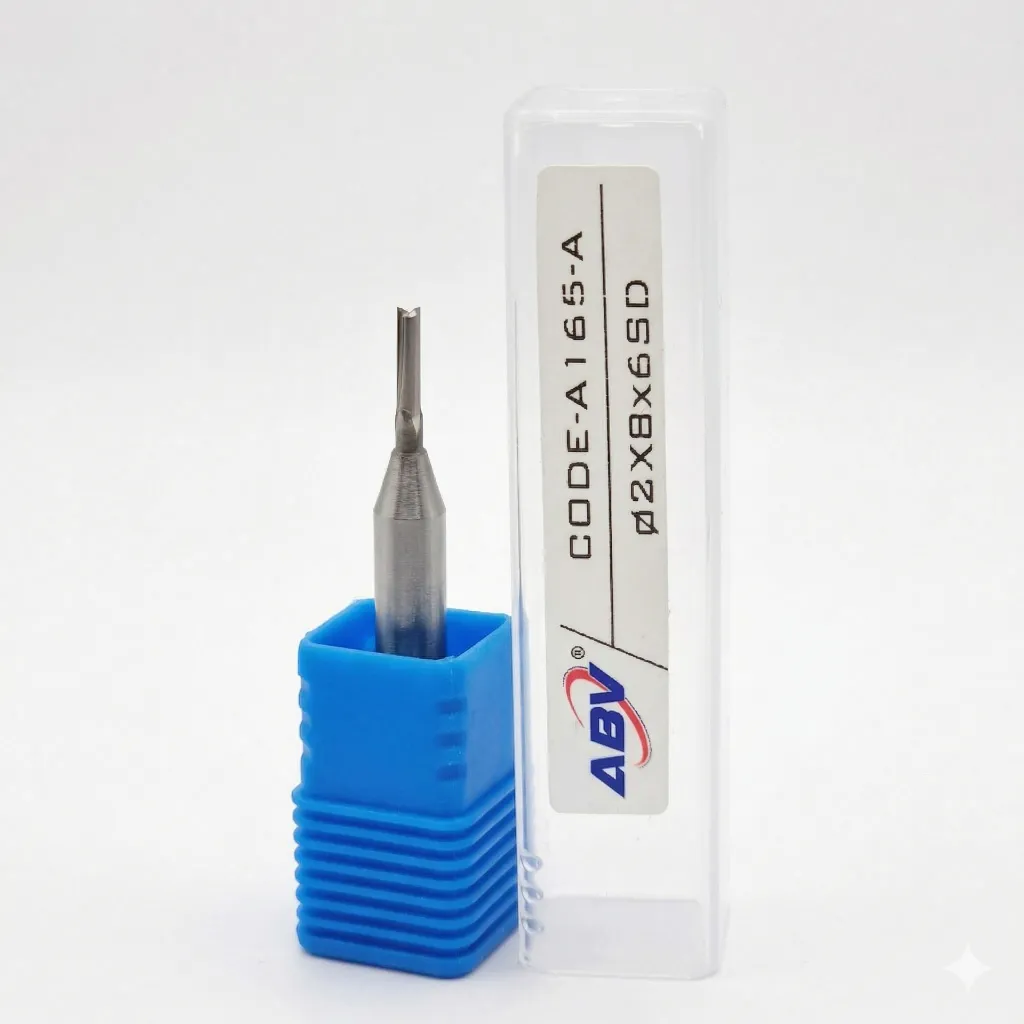

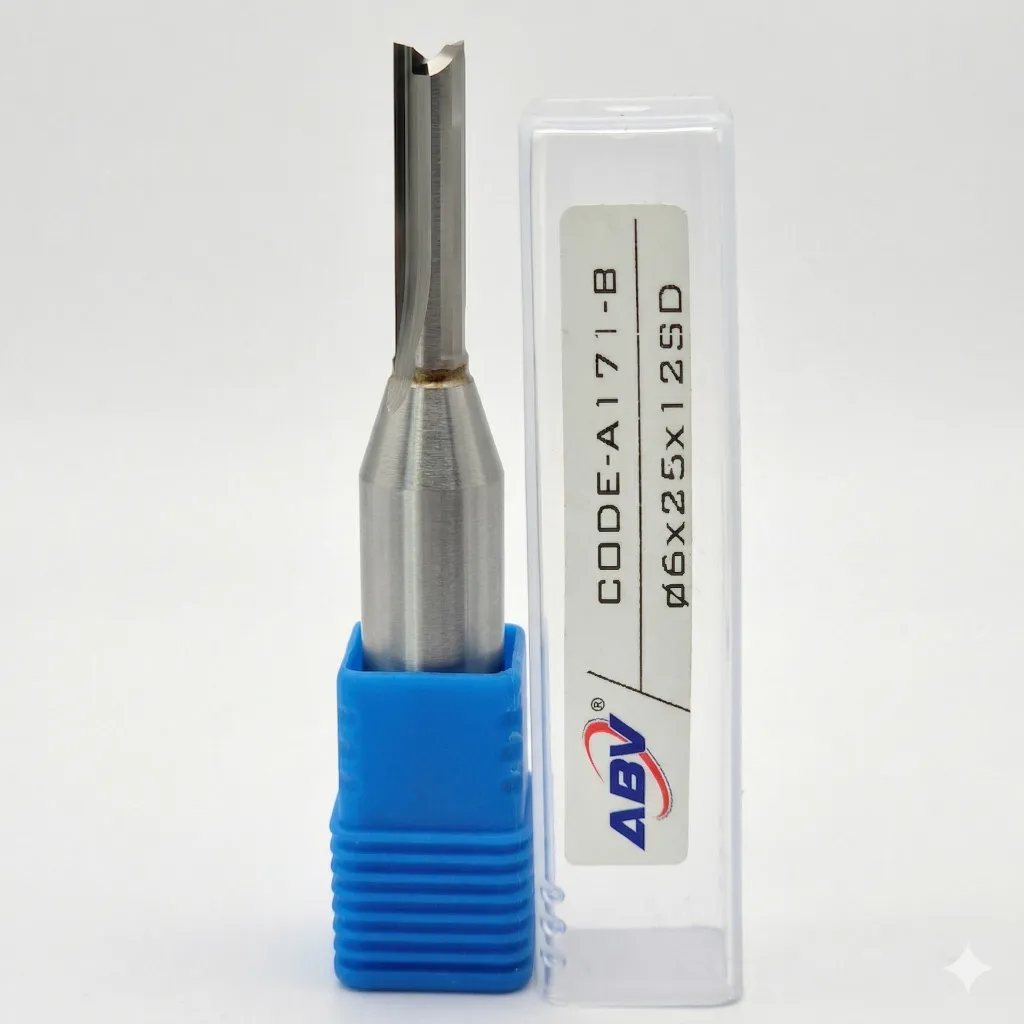

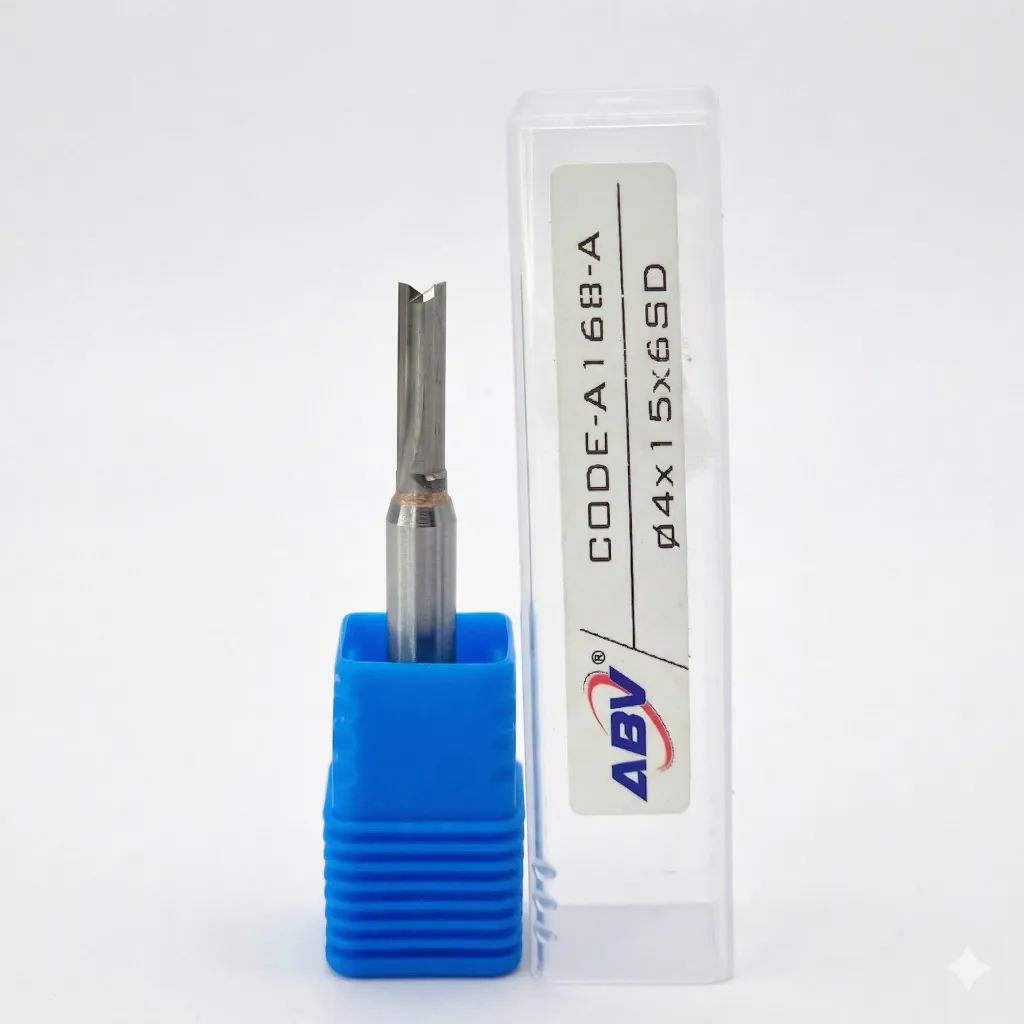

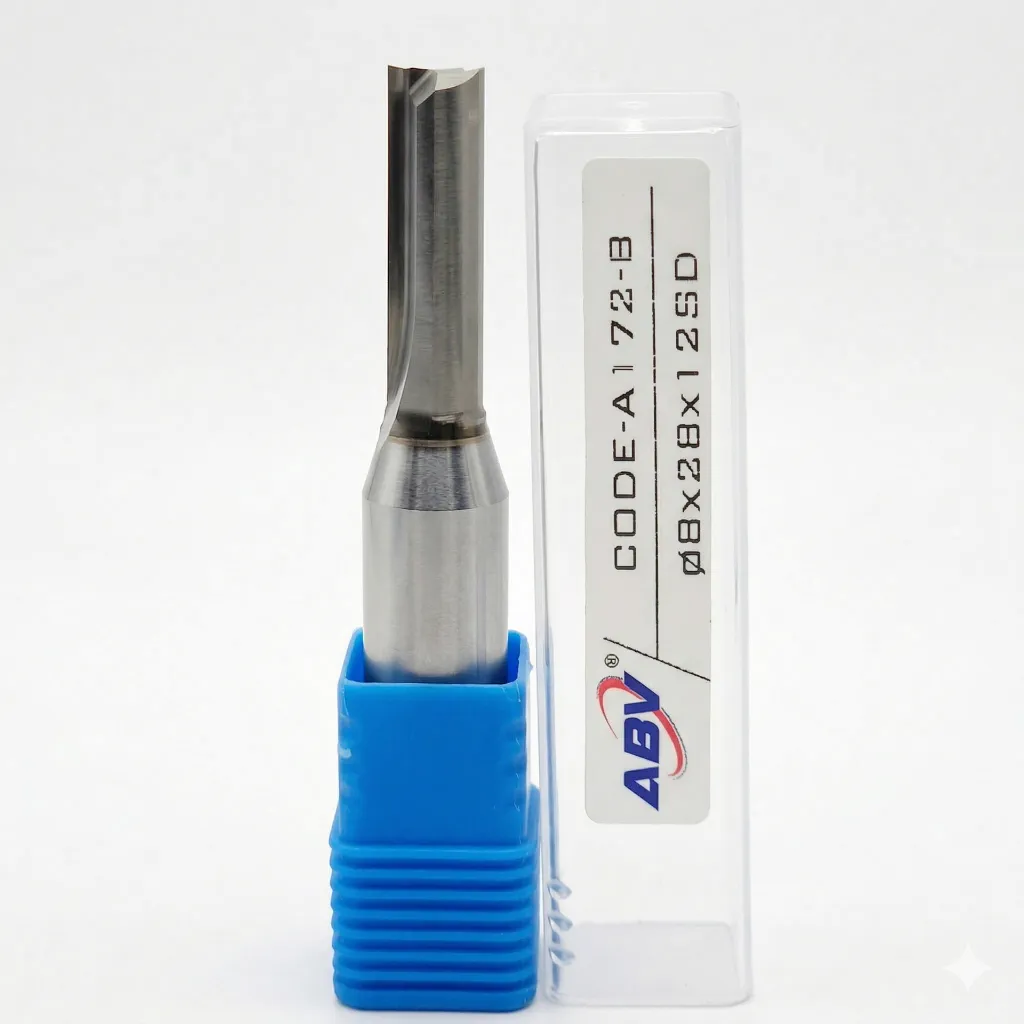

A 2-Flute TCT (Tungsten Carbide Tipped) Straight Endmill is a high-performance router bit designed for high-production woodworking. Unlike solid carbide bits, TCT bits feature a steel body with specialized tungsten carbide edges brazed onto the tips.
+1
This hybrid construction provides the extreme hardness of carbide where the cutting happens, while the steel body adds shock resistance and keeps the tool affordable for larger diameters.
1. Key Features of TCT Straight Bits
Dual Cutting Edges: The two-flute design balances speed and finish. It provides more stability than a single flute while maintaining enough "gullet" space for efficient chip clearance.
Neutral Geometry: As a straight flute bit, it has a 0° helix. This means it doesn't pull the material up or push it down, preventing "lifting" of thin sheets or splintering of delicate veneers.
Cost-Efficiency: Because only the cutting edge is carbide, these are significantly more affordable than solid carbide bits, especially when you need large diameters 12mm to 50mm.
High Thermal Stability: TCT bits can withstand temperatures up to 1000°C, making them ideal for long production runs in abrasive materials like MDF.
2. Best Applications for ABV Tool Customers
In the Ahmedabad market, these are the "workhorse" bits for industrial furniture and cabinet shops:
| Material | Why use TCT Straight? |
| MDF & Particle Board | The glue in these boards is very abrasive; TCT edges stay sharp $5-7\times$ longer than HSS. |
| Laminated Panels | The neutral cut prevents the laminate or sunmica from chipping at the edges. |
| Plywood | Reduces "edge explosion" or splintering on the top and bottom layers. |
| Hardwoods | Excellent for cutting deep grooves, dadoes, and mortises for joinery. |
+1
3. Comparison: TCT vs. Solid Carbide
| Feature | TCT (Carbide Tipped) | Solid Carbide |
| Body Material | Hardened Steel | 100% Tungsten Carbide |
| Shock Resistance | High (Steel is flexible) | Lower (Carbide is brittle) |
| Price | Affordable / Value-driven | Premium / High-cost |
| Sharpenability | Very easy to re-grind | Requires specialized CNC grinders |
| Best For | Wood, MDF, Plastics | Aluminum, Steel, High-detail 3D |
4. Pro-Tips for Performance
RPM Range: These bits typically perform best between 18,000 and 24,000 RPM. If you see burning on the wood, increase your feed speed ($mm/min$) rather than just lowering the RPM.
Plunge Capability: Many TCT straight bits are "center-cutting," meaning they can drill straight down. However, ramping at a 15° angle is always better for extending the life of the carbide tips.
Maintenance: Resin and glue can build up on the steel body behind the carbide tip. Clean the bit regularly with a solvent to prevent friction-based heat from softening the braze that holds the carbide tip on.
