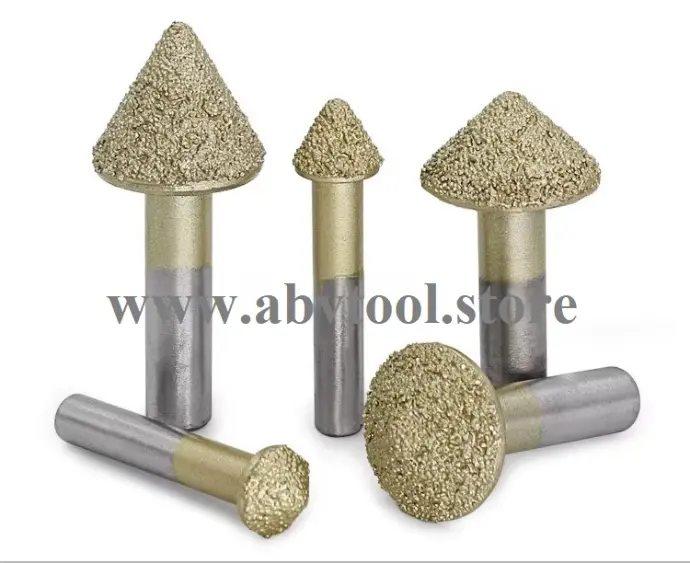

A 3D Mushroom-Shaped Head Vacuum Brazed Stone Tool is a specialized profiling and relief bit designed for smooth, curved surface machining. While a standard ball nose is used for general 3D work, the "Mushroom" design features a wider, flatter curvature on the top with rounded edges, resembling a dome or mushroom cap.
In your local Ahmedabad market, this is a premium tool sold for high-end relief polishing and creating inner arc surfaces in marble and granite.
1. Unique Mushroom Geometry
Wider Cutting Surface: The mushroom head provides a larger contact area than a ball nose of the same shank size. This allows for faster material removal on large, curved surfaces.
Smooth Glide Design: The specialized shape allows the tool to glide over the stone with less friction than a flat bit, reducing heat buildup—a critical factor when working with heat-sensitive marble.
Under-Cutting Ability: Because the "cap" is often wider than the shank, this tool can perform slight under-cuts or reach into areas where a straight-walled bit would interfere with the material.
2. Best Applications for ABV Tool Customers
| Application | Why Mushroom Head? |
| Relief Polishing | Used after roughing to "buff" and smooth out the ridges (scallops) left by other bits. |
| Flower Pot Making | Perfect for grinding the rounded inner bottoms and smooth inner arcs of stone pots. |
| Countertop Arcs | Ideal for smoothing out the inner curves of a "drop-in" sink cutout or a curved backsplash. |
| Sculptural Detailing | Used by artists for final surface blending on statues and large architectural panels. |
3. Vacuum Brazed vs. Sintered Mushroom Bits
Vacuum Brazed (VB): As found in your current inventory, these are best for Marble, Sandstone, and Soft Limestone. They are very aggressive and "free-cutting," meaning they don't clog easily with stone slurry.
Sintered: Better for Hard Granite. Sintered mushroom bits have diamonds throughout the entire head, so they can be "dressed" or reshaped as they wear down, though they cut slower than VB versions.
4. Technical Usage Strategy
RPM & Speed: These tools should generally run at 8,000 to 12,000 RPM. Avoid the 20,000+ RPM settings of wood tools to prevent "glazing" the diamond layer.
Water is Best: For the finest finish (and to protect the bit), use constant water cooling. This turns the stone dust into a slurry that is easily flushed away, keeping the diamond grit sharp.
Step-Over: For a "sanded" finish, use a very tight step-over (typically 5% to 10% of the head diameter).
Connection Types: In India, these are commonly available with a 6mm or 12mm round shank for CNC routers, or an M14 thread for manual angle grinders.
5. Why it’s a Winner for abv tool
This tool is the bridge between rough carving and final hand-polishing.
Customer Pain Point: "I spent 5 hours carving a marble relief, but now I have to spend 10 hours hand-sanding the ridges."
Your Solution: "Use the 3D Mushroom Head for a final 'skin pass' to reduce your hand-finishing time by 70%."
