Clamp For CNC Router

T-Slot Hold-Down Clamps are the most common and reliable method for securing workpieces to a CNC router's aluminum T-track bed. They provide the high vertical pressure necessary to prevent material from shifting or vibrating—which is the #1 cause of broken carbide bits.

For your customers at abvtool.store, these are essential "safety" hardware for any professional workshop.

1. Components of the Clamp Set

As seen in your provided image, a standard set includes three parts:

  • The T-Bolt: The square head slides into the T-slot track of your CNC bed.

  • The Flange Nut/Hex Nut: Used to tighten the clamp onto the material.

  • The Pressure Plate: The long, slotted metal bar that bridges the gap between the T-track and your workpiece.

2. Why Use T-Slot Clamps?

BenefitWhy it matters for ABV Tool customers
Massive Holding PowerEssential for heavy roughing passes in hardwoods or aluminum where side-pressure is high.
Adjustable RangeThe long slot in the pressure plate allows you to slide the clamp closer to or further from the material.
Vertical StabilityPrevents "lifting" when using Up-cut bits that pull the material toward the spindle.
Rust ResistanceUsually made of hardened steel or oxide-coated iron, making them durable in humid environments like Ahmedabad.

3. Usage Best Practices

  • Check the "Collision Zone": Because these clamps sit on top of the material, they are dangerous if your toolpath crosses their location. Always set a safe Z-clearance (Retract Height) in your software to at least 5mm to 10mm higher than the top of the clamp nut.

  • Leveling: The clamp should ideally be parallel to the table. If you are clamping very thick material, you may need a "Step Block" under the back end of the clamp to keep it level.

  • Symmetry: For large boards, use at least four clamps (one at each corner) to ensure the board doesn't "bow" or arch in the middle.

4. Comparison: T-Slot vs. Other Clamps

  • T-Slot Clamps: Best for heavy, thick materials and high-torque cutting.

  • Low-Profile Clamps: Better for surface leveling (facing) where you need the top of the board to be completely clear.

  • Toggle Clamps: Best for fast production where you change the same size part many times.

5. Summary for your Store

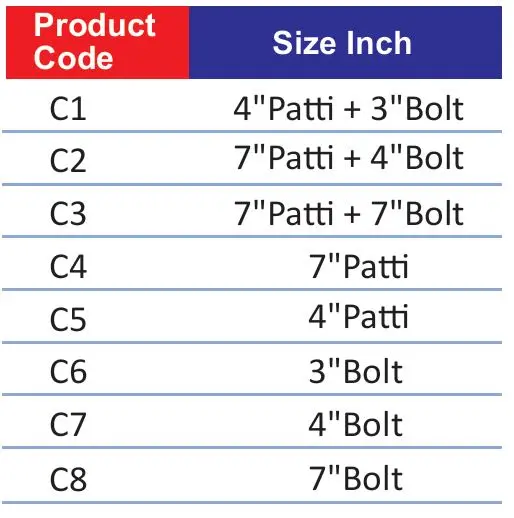

Stocking these in various lengths (as seen in your photo) is a great strategy.

  • Long Clamps: Better for reaching toward the center of a board.

  • Short Clamps: Ideal for small hobby machines or tight spaces.
