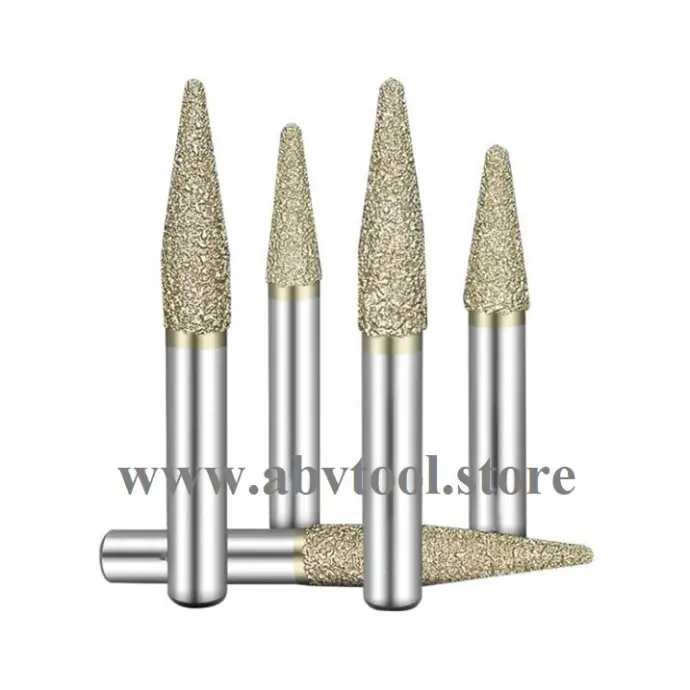

A Conical Head Tapered Ball Nose Vacuum Brazed Stone Tool is an advanced engineering hybrid. It combines the deep-reach strength of a tapered (conical) body with the smooth-finishing tip of a ball nose, all bonded with vacuum brazing technology.
For ABV Tool in Ahmedabad, this is a premium solution for customers who need to perform deep 3D relief carvings in marble and sandstone without the risk of tool breakage.
1. The "Hybrid" Design Advantage
This tool effectively combines three different geometries into one:
Tapered (Conical) Body: The body widens toward the shank (e.g., a 3mm tip widening to a 10mm shank). This provides massive structural support, allowing for deep carving with zero "tool flex" or vibration.
Ball Nose Tip: The rounded tip is essential for 3D profiling. It creates smooth, rounded grooves and fluid transitions in organic shapes like statues or floral patterns.
Vacuum Brazing: This process bonds a single, aggressive layer of diamond grit to the steel body. It makes the tool sharper than sintered bits, allowing for faster feed rates and cooler cutting.
2. Best Applications for Stone CNC
| Application | Why Tapered Ball Nose? |
| Deep 3D Reliefs | Perfect for carving Murti (statues) or deep decorative panels where a straight bit would snap. |
| Temple Jali Work | Ideal for reaching into tight, deep corners while maintaining a smooth, rounded edge. |
| Architectural Pillars | Used for the final finishing pass on rounded flutes and complex engravings. |
| Bas-Relief Icons | Provides a "sand-free" finish on marble, reducing manual post-processing time. |
3. Comparison: Tapered vs. Straight Ball Nose
| Feature | Straight Ball Nose | Tapered Ball Nose |
| Rigidity | Moderate (prone to snapping) | Maximum (High Strength) |
| Reach | Consistent width | Can reach deeper due to angled body |
| Wall Finish | 90° Vertical Walls | Angled Walls (e.g., 5.4° or 7°) |
| Detailing | Good | Excellent for Fine Details |

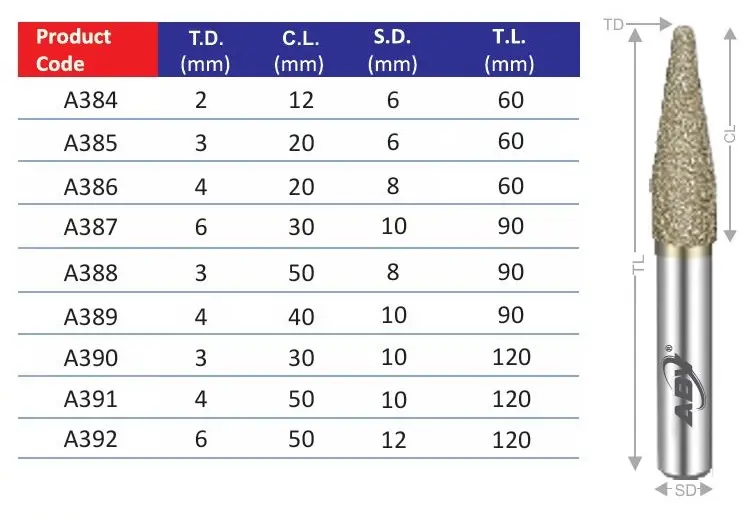

4. Technical Specs for abvtool.store
When marketing these to your Ahmedabad clients, focus on these "Pro" configurations:
Tip Diameters: Common sizes are 3mm, 4mm, and 6mm.
Shank Diameters: Usually 8mm, 10mm, or 12mm for heavy-duty stability.
Coating/Color: Often seen in Golden or Blue (vacuum brazed diamond coatings).
Operation: Can be used for Dry Cutting (marble/soft stone), but water cooling is always recommended for longevity.
5. Pro-Tips for Your Customers
Skip the Roughing: Because these bits are so strong, users can often skip a roughing pass in marble and go straight to 3D finishing, cutting production time by 40%.
Ramping is Key: Always "ramp" into the stone at a 10–15° angle. Plunging vertically can damage the diamond grit at the very tip where speed is lowest.
RPM Setting: Keep the speed between 8,000 and 12,000 RPM. Over-speeding will "glaze" the diamond layer, making it feel dull even if grit is still present.
