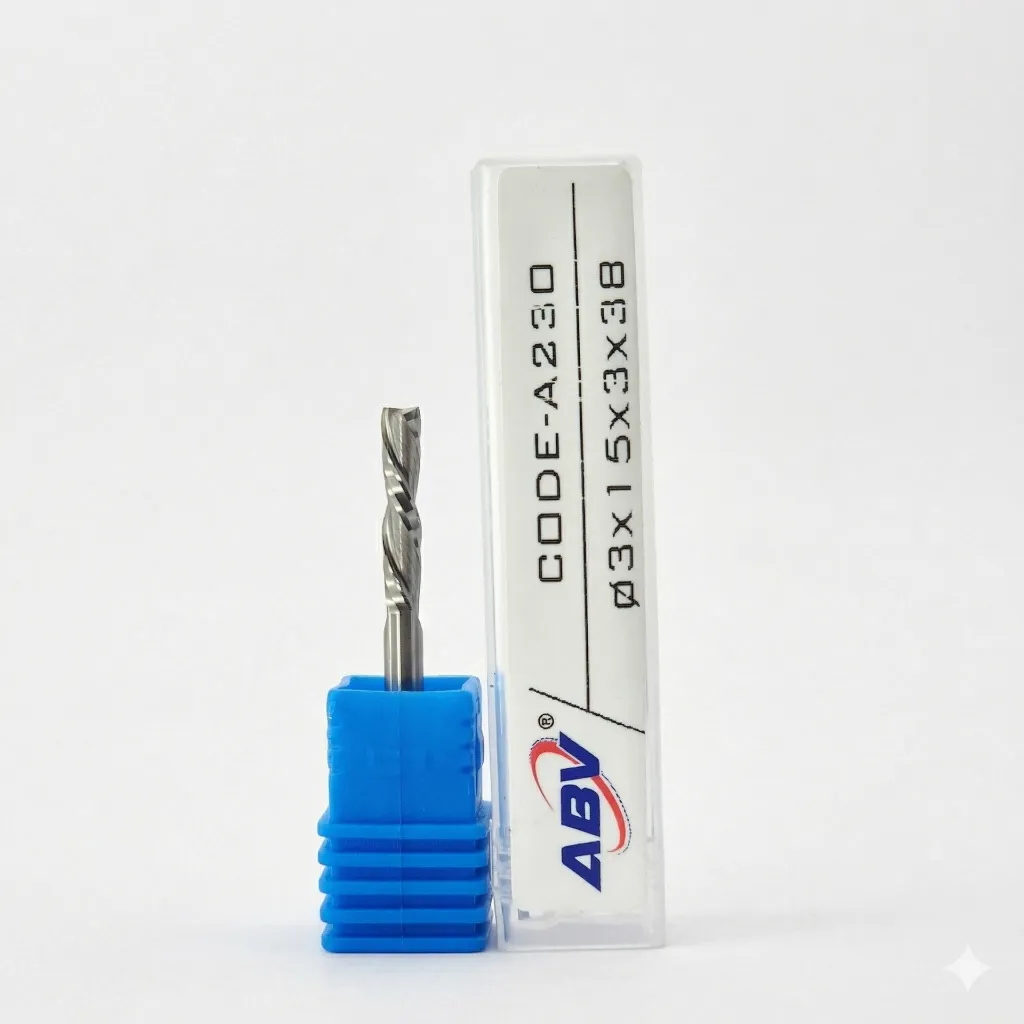

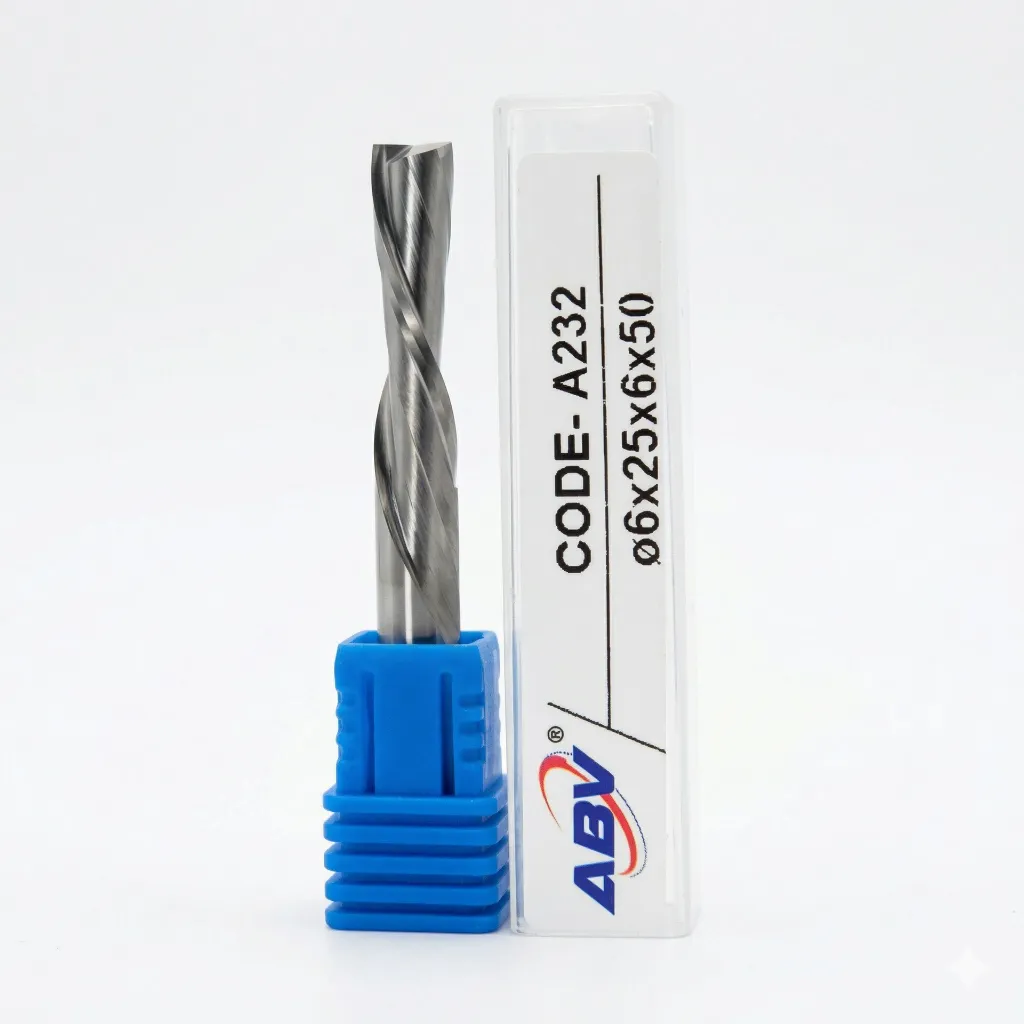

A Down Cut Spiral Endmill with 2 Flutes is a precision CNC tool designed to push chips downward into the cut. This action creates a "clamping" effect that presses the material against the machine bed, making it the industry standard for machining thin sheets and materials prone to surface splintering.
For ABV Tool in Ahmedabad, these are essential for furniture manufacturers and sign makers who work with pre-laminated boards and high-end plywood.
1. The "Down-Cut" Advantage
Zero Top-Surface Tear-out: Because the flutes shear the material from the top down, the upper edge of the cut is perfectly crisp. It prevents the "fuzzing" or splintering commonly seen with up-cut bits.
Material Stability: The downward pressure helps hold thin or small workpieces in place, which is especially helpful if your vacuum table or clamping system is weak.
Chip Packing: Unlike up-cut bits that eject chips, down-cut bits often pack fine dust back into the groove. While this sounds bad, it actually helps hold the cutout piece in place so it doesn't fly off at the end of the cut.
2. Best Materials & Use Cases
| Material | Why use 2-Flute Down-Cut? |
| Laminated MDF / Melamine | Prevents chipping of the brittle plastic top layer. |
| Thin Plywood (Birch) | Stops the delicate face veneer from lifting and splintering. |
| Veneered Boards | Mandatory for "show-face" furniture parts to ensure a glass-like edge. |
| Thin Plastics/Acrylic | Reduces vibration and prevents the bit from "lifting" the sheet during the cut. |
3. Why 2 Flutes?
The 2-flute configuration provides a perfect balance between strength and chip clearance.
Compared to 1-Flute: It allows for a smoother finish and higher feed rates (speed) because you have two cutting edges per revolution.
Compared to 3+ Flutes: It provides enough space in the "gullet" (the gap between flutes) so that the packed dust doesn't overheat the bit instantly.
4. Critical Warnings for Your Customers
Avoid Deep Through-Cuts: Because chips are pushed down, they have nowhere to go in a deep slot. This causes heat buildup and can burn the wood or snap the bit.
Solution: Use these for shallow pockets or use a "Compression Bit" for deep through-cuts.
No Vertical Plunging: Never plunge straight down (Z-axis only). The "fishtail" or flat end of a down-cut bit is not designed to eject chips upward. Always use a "Ramp" entry.
Dust Extraction: Since dust is packed into the cut, you may need to manually vacuum or blow out the grooves after the job is finished.
5. Summary for abv tool

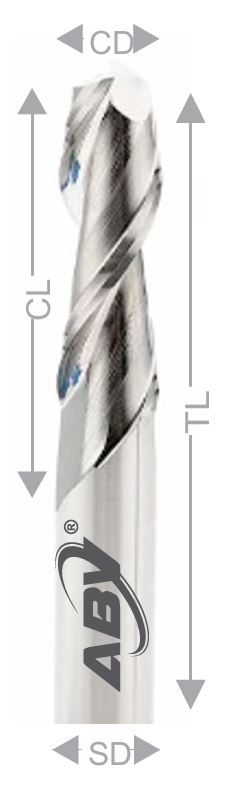

Stock these in 3mm, 4mm, 6mm, and 8mm diameters.
Pro Tip: Tell your customers: "If the top of your board looks like it needs sanding, you're using an Up-cut. Switch to our 2-Flute Down-Cut for a factory-finished edge straight off the machine."
