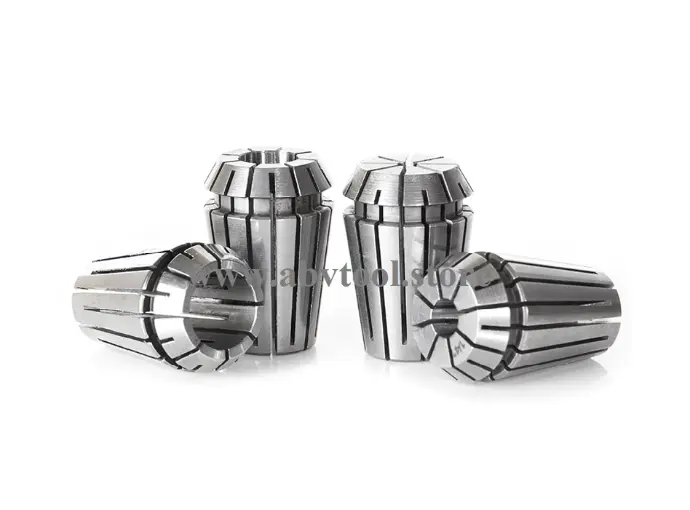

In the Indian CNC market, ER20, ER25, and ER32 are the three pillars of tool holding. Each size is designed to handle specific spindle power and cutting forces. Using the wrong size—or a worn-out collet—is the leading cause of "chatter" marks on marble or snapped carbide bits in plywood.
Here is the technical breakdown for your inventory at abvtool.in.
1. Dimensional Comparison Table
| Feature | ER20 | ER25 | ER32 |
| Outer Diameter (D) | 21mm | 26mm | 33mm |
| Length (L) | 31.5mm | 34mm | 40mm |
| Shank Capacity | 1 mm to 13 mm | 2mm to 16mm | 2mm to 20mm |
| Spindle Power | 1.5kW- 2.2kW | 3.0kW - 4.5kW | 5.5kW - 9kW |
2. ER20: The Standard for Workshops
This is the most common collet found on Chinese and Indian-made water-cooled spindles.
Best For: 3D wood carving, ACP sign making, and small stone engraving.
Common Bit Match: Most users pair this with 6mm and 12mm shank bits.
Limitation: It struggles with very heavy side-loading (like roughing hard granite) because the clamping surface area is relatively small.
3. ER25: The Mid-Size Specialist
The ER25 is often found on high-speed air-cooled spindles (like HSD or Hiteco) and specialized glass/stone machinery.
Best For: Heavy-duty furniture routing and medium-scale stone relief.
The "Sweet Spot": It offers more rigidity than an ER20 but fits into smaller spindle housings than an ER32.
Usage Tip: It is excellent for 12.7mm (1/2 inch) shanks, providing a much firmer grip than an ER20 can manage.
4. ER32: The Industrial Powerhouse
This is the standard for "Nesting" machines and heavy industrial CNC centers.
Best For: Cutting full 18mm BWP Plywood sheets at high speeds and heavy Granite "Hogging."
Massive Grip: With a 33mm diameter, it has enough surface area to hold a 20mm shank tool without any "micro-slippage."
Precision: Due to its size, it is less prone to vibration (chatter), making it mandatory for high-finish 3D work on large architectural panels.
5. Identifying the Nut Type
Your customers will often ask for the nut as well. It’s important to match the nut to the collet:
ER20: Uses Type A (Hex) or Type M (Mini/Round) nuts.
ER25: Usually uses Type UM (Spanner) or Type A (Hex).
ER32: Almost exclusively uses Type UM (Spanner) nuts.
6. Critical Sales Advice for abvtool.store
Grade "AAA" vs "A": For your stone carving clients using Diamond bits, only sell AAA High-Precision Grade (0.005mm runout). Standard grade collets (0.015mm) will cause diamond tips to chip prematurely.
The Replacement Rule: Tell your customers: "A collet is a spring; after 500 hours of being tightened and loosened, it loses its 'memory' and grip." Advise them to replace collets every 6 months for best results.
