A Sintered Ball Head Stone Tool (often called a Sintered Ball Nose Finger Bit) is the industrial standard for heavy-duty 3D stone carving. Unlike vacuum brazed tools that have a single surface layer of diamonds, a sintered tool is "impregnated." This means diamond grit is mixed throughout a metal matrix, forming a solid, uniform segment that wears down slowly to reveal fresh diamonds.
1. The "Life-Cycle" Advantage
The primary reason to choose a sintered ball head over a brazed one is the cost-per-carving:
Multiple Diamond Layers: As the tool head wears down, new layers of diamond are exposed. This allows the tool to maintain its cutting efficiency until the entire segment is physically worn away.
Structural Durability: Sintered heads are extremely hard and do not deform easily under the high pressure required for granite.
Self-Sharpening: If the bit starts to feel dull ("glazing"), it can be "opened" or "dressed" by running it into a soft abrasive stone to strip away the old metal bond and expose fresh diamonds.
2. Applications: Where it Shines
The ball head geometry is the specialist for curved surface machining:
| Application | Usage Description |
| 3D Granite Reliefs | Sculpting religious icons and decorative wall panels in hard granite. |
| Engraving Large Text | Producing deep, rounded letters on monuments and memorial stones. |
| Polishing Inner Arcs | Smoothing out the rounded inner corners of drop-in sink cutouts. |
| High-Precision Contouring | Final semi-finishing passes on 3D statues to reduce manual hand-grinding. |
3. Comparison: Sintered vs. Vacuum Brazed Ball Nose
| Feature | Sintered (Metal Bond) | Vacuum Brazed (VB) |
| Primary Material | Granite, Hard Quartz, Basalt | Marble, Sandstone, Soft Stone |
| Tool Life | Extremely Long | Moderate (single layer) |
| Aggressiveness | Moderate (requires pressure) | High (cuts immediately) |
| Cooling | Internal/External Water (Mandatory) | Wet or Dry |
| Deformation | Highly Resistant | Can deform if overheated |
4. Technical Guidance for Your Customers
To ensure your clients get the best results from the bits they buy at abv tool, recommend the following:
Internal Cooling: High-quality sintered bits often feature an internal water passage (hole) through the shank to cool the tip directly from the inside. This is essential for preventing the diamond segment from melting.
Optimal RPM: For 6mm to 12mm bits, stay within 6,000 to 10,000 RPM. Avoid high wood-routing speeds.
Feed Rate: Start at a conservative 150–300 mm/min for granite. Sintered tools prefer a steady, firm feed to prevent the matrix from glazing over.

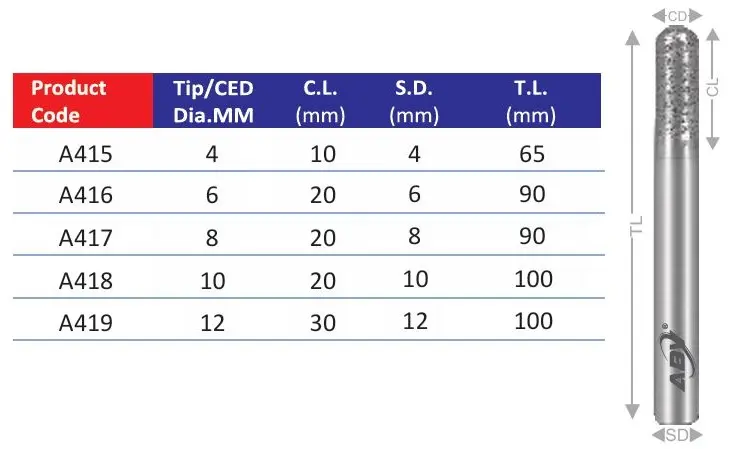

Common Sizes: Most popular in Ahmedabad are the 6mm, 8mm, 10mm, and 12mm shanks with grit sizes around 30# to 60# for roughing and 100#+ for finishing.
5. Summary for abvtool.store
Sintered tools represent a higher initial investment for your customers, but they significantly reduce the cost of engraving because they don't need to be replaced nearly as often as brazed bits.
