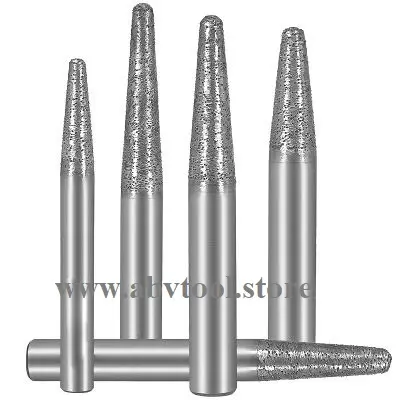

A Sintered Conical Head Tapered Ball Nose tool is the heavy-duty industrial evolution of the carving bit. While vacuum-brazed versions are sharp and fast for marble, this sintered version is built for continuous production in hard granite, sandstone, and technical stone.
Because the diamond grit is embedded throughout the metal matrix (sintered), the tool remains effective even as it wears down, making it the most cost-effective choice for large-scale architectural and religious carving projects in Gujarat.
1. The Design: Power + Precision
This tool combines the best of three engineering worlds:
Conical (Tapered) Body: The body is thickest at the shank and tapers toward the tip. This design provides maximum rigidity, which is essential for deep carving (up to 30mm–50mm) without the tool snapping or vibrating.
Ball Nose Tip: The rounded tip allows for smooth 3D contouring and prevents sharp "steps" in your 3D models.
Sintered Matrix: Unlike a single layer of diamond coating, the diamond grit is mixed with metal powder and bonded under high pressure. As the tool wears, new diamonds are exposed—making it self-sharpening.
2. When to Recommend This to Your Customers
For your business at abvtool.in, this bit is the solution for clients who say, "My vacuum-brazed bits are wearing out too fast in hard granite."
| Feature | Best For | Why Choose It? |
| Material | Granite, Hard Sandstone, Quartz | The metal bond can handle the extreme abrasion of these stones. |
| Operation | Relief Carving (Rilievo), 3D Statues | Reaches deep into designs while maintaining a smooth finish. |
| Machine | CNC Stone Routers | Designed for the high torque and water-cooling systems of stone CNCs. |
| Detailing | Writing & Fine Jali Work | The tapered strength allows for very small tip sizes 2mm–4mm that won't break. |
3. Technical Specifications & Usage
Based on popular industrial standards in Ahmedabad:

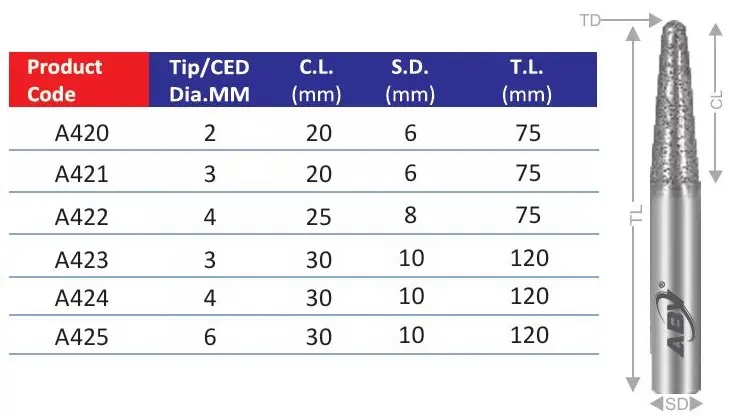

Common Shank Sizes: 6mm, 8mm, 10mm, and 12mm. (Heavier shanks are better for high-speed industrial machines).
Tip Sizes: Available from 2mm for fine text up to 8mm for large architectural fluting.
RPM Strategy: Typically runs between 8,000 and 12,000 RPM.
Water Cooling: While some are labeled as "dry cutting," using constant water flow is mandatory to prevent the metal matrix from melting and "glazing" the diamonds.
4. Pro-Maintenance: "Dressing" the Tool
Since this is a sintered tool, it can sometimes stop cutting if the metal bond doesn't wear away fast enough.
Tip: If the bit feels "blunt," run it through a soft, abrasive sandstone block or a dedicated dressing stone. This will strip the outer metal layer and expose fresh, sharp diamonds, bringing the tool back to life.
